MB2D.UI.UIView Class Reference

A single context for all UI elements and layouts. More...

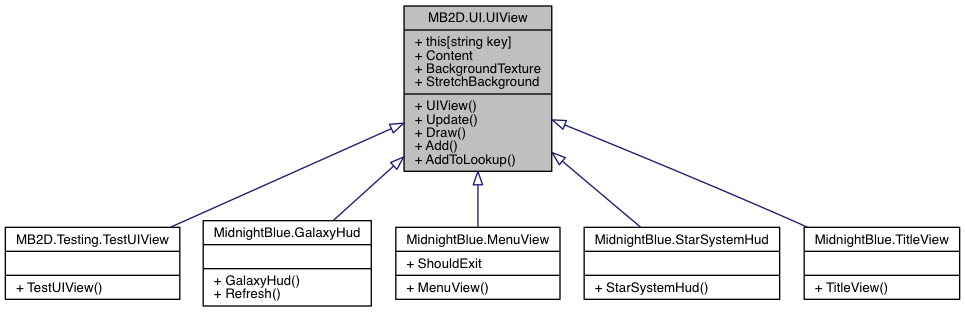

Inheritance diagram for MB2D.UI.UIView:

Collaboration diagram for MB2D.UI.UIView:

Public Member Functions
	UIView (int rows, int cols)
	Initializes a new instance of the T:MB2D.UI.UIView class. Divides itself into the number of rows and columns evenly based on the size of the current viewport. More...
void	Update ()
	Updates and handles input for all elements in the View. More...
void	Draw (SpriteBatch spriteBatch, SpriteBatch uiSpriteBatch)
	Draws the View and its elements to the window More...
void	Add (UIElement element, int atRow, int atCol, int rowSpan, int colSpan)
	Adds a new UIElement to the View More...
void	AddToLookup (UIElement element)
	Adds an element to the lookup table used by the view More...

Properties
UIElement	this[string key] [get]
	Gets the T:MB2D.UI.UIElement with the specified key. More...
UIElement [,]	Content [get]
	Gets the elements this View contains in a 2D array More...
Texture2D	BackgroundTexture [get, set]
	Gets or sets the background texture of the view. More...
bool	StretchBackground [get, set]
	Gets or sets a value indicating whether the background image shoudl stretch to fit the window. More...

Detailed Description

A single context for all UI elements and layouts.

Constructor & Destructor Documentation

UIView()

MB2D.UI.UIView.UIView ( int  rows, int  cols  )

inline

Initializes a new instance of the T:MB2D.UI.UIView class. Divides itself into the number of rows and columns evenly based on the size of the current viewport.

Parameters

rows	Number of rows in the view
cols	Number of columns in the view

Member Function Documentation

Add()

void MB2D.UI.UIView.Add ( UIElement  element, int  atRow, int  atCol, int  rowSpan, int  colSpan  )

inline

Adds a new UIElement to the View

Parameters

element	Element to add.
atRow	Row position in the View.
atCol	Column position in the View.
rowSpan	Number of rows the element takes up.
colSpan	Number of columns the element takes up.

Here is the call graph for this function:

Here is the caller graph for this function:

AddToLookup()

void MB2D.UI.UIView.AddToLookup ( UIElement  element )

inline

Adds an element to the lookup table used by the view

Parameters

element

Element to add.

Here is the caller graph for this function:

Draw()

void MB2D.UI.UIView.Draw ( SpriteBatch  spriteBatch, SpriteBatch  uiSpriteBatch  )

inline

Draws the View and its elements to the window

Parameters

uiSpriteBatch

Sprite batch to draw to.

Here is the call graph for this function:

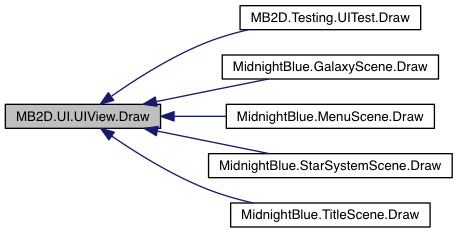

Here is the caller graph for this function:

Update()

void MB2D.UI.UIView.Update ( )

inline

Updates and handles input for all elements in the View.

Here is the call graph for this function:

Here is the caller graph for this function:

Property Documentation

BackgroundTexture

Texture2D MB2D.UI.UIView.BackgroundTexture

getset

Gets or sets the background texture of the view.

The background texture.

Content

UIElement [,] MB2D.UI.UIView.Content

get

Gets the elements this View contains in a 2D array

All UIElements.

StretchBackground

bool MB2D.UI.UIView.StretchBackground

getset

Gets or sets a value indicating whether the background image shoudl stretch to fit the window.

true if background should be stretched; otherwise, false.

this[string key]

UIElement MB2D.UI.UIView.this[string key]

get

Gets the T:MB2D.UI.UIElement with the specified key.

Parameters

key	Tag of the element.

---

The documentation for this class was generated from the following file:

• MB2D/src/UI/UIView.cs
