Defines a UI object that can be contained within Views and Layouts, drawn, updated, and moved about More...

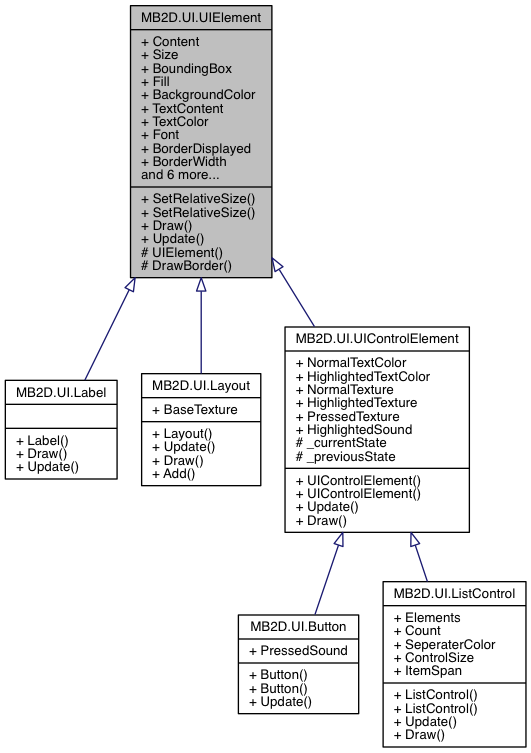

Inheritance diagram for MB2D.UI.UIElement:

Collaboration diagram for MB2D.UI.UIElement:

Public Member Functions
void	SetRelativeSize (UIContent parent, Point at, Point span)
	Sets the size of the element relative to its parent More...

void	SetRelativeSize (UIContent parent, int atRow, int atCol, int rowSpan, int colSpan)
	Sets the size of the element relative to its parent More...

virtual void	Draw (SpriteBatch spriteBatch)
	Draws the element to the window. Overriden in derived classes More...

abstract void	Update ()
	Update the elements state and handles input. Overriden in derived classes More...

Protected Member Functions
	UIElement (int rows, int cols)
	Initializes a new instance of the T:MB2D.UI.UIElement class. Sets default property values More...

void	DrawBorder (SpriteBatch spriteBatch)
	Draws the elements border to the window. Skips sides that have color set to Color.Transparent More...

Properties
UIContent	Content `[get]`
	Gets the UIContent of the element, only available in container elements More...

Vector2	Size `[get]`
	Gets the column and row count of the element More...

Rectangle	BoundingBox `[get]`
	Gets the bounding box of this element More...

bool	Fill `[get, set]`
	Gets or sets a value that indicates the element should be stretched or shrunk to fill its parents bounds exactly More...

Color	BackgroundColor `[get, set]`
	Gets or sets the color of the elements background. More...

string	TextContent `[get, set]`
	Gets or sets the string rendered by the element. More...

Color	TextColor `[get, set]`
	Gets or sets the current color of the text. More...

SpriteFont	Font `[get, set]`
	Gets or sets the font used in rendering the elements TextContent More...

bool	BorderDisplayed `[get, set]`
	Gets or sets a value indicating whether this T:MB2D.UI.UIElement has itsborder displayed. More...

int	BorderWidth `[get, set]`
	Gets or sets the width of the border. More...

Color	BorderColor `[get, set]`
	Gets or sets the color of the border. More...

Color	BorderTopColor `[get, set]`
	Gets or sets the color of the border top. More...

Color	BorderRightColor `[get, set]`
	Gets or sets the color of the border right. More...

Color	BorderBottomColor `[get, set]`
	Gets or sets the color of the border bottom. More...

Color	BorderLeftColor `[get, set]`
	Gets or sets the color of the border left. More...

string	Tag `[get, set]`
	Gets or sets the tag used to quickly access this element and uniquely identify it. More...

Detailed Description

Defines a UI object that can be contained within Views and Layouts, drawn, updated, and moved about

Constructor & Destructor Documentation

§ UIElement()

MB2D.UI.UIElement.UIElement	(	int	rows,
		int	cols
	)

inlineprotected

Initializes a new instance of the T:MB2D.UI.UIElement class. Sets default property values

Parameters

rows	Number of rows this element should span - used only be used for container elements
cols	Number of columns this element should span - used only be used for container elements.

Member Function Documentation

§ Draw()

virtual void MB2D.UI.UIElement.Draw ( SpriteBatch spriteBatch )

inlinevirtual

Draws the element to the window. Overriden in derived classes

Parameters

spriteBatch Sprite batch to draw to.

Reimplemented in MB2D.UI.ListControl, MB2D.UI.UIControlElement, MB2D.UI.Layout, and MB2D.UI.Label.

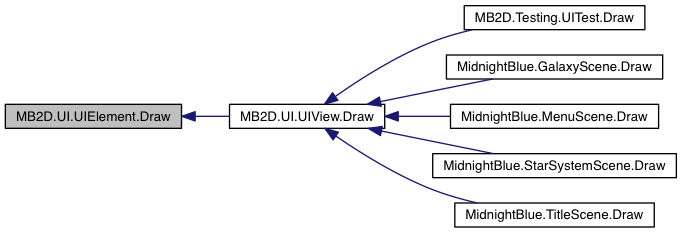

Here is the caller graph for this function:

§ DrawBorder()

void MB2D.UI.UIElement.DrawBorder ( SpriteBatch spriteBatch )

inlineprotected

Draws the elements border to the window. Skips sides that have color set to Color.Transparent

Parameters

spriteBatch Sprite batch to draw the border to.

§ SetRelativeSize() [1/2]

void MB2D.UI.UIElement.SetRelativeSize	(	UIContent	parent,
		Point	at,
		Point	span
	)

inline

Sets the size of the element relative to its parent

Parameters

parent	Parent content to align to
at	Position element should be set to
span	Number of columns/rows the element should span.

Here is the caller graph for this function:

§ SetRelativeSize() [2/2]

void MB2D.UI.UIElement.SetRelativeSize	(	UIContent	parent,
		int	atRow,
		int	atCol,
		int	rowSpan,
		int	colSpan
	)

inline

Sets the size of the element relative to its parent

Parameters

parent	Parent content to align to
atRow	Row position the element should align to.
atCol	Column position the element should align to.
rowSpan	Number of rows in the parent the element should span.
colSpan	Number of columns in the parent the element should span.

§ Update()

abstract void MB2D.UI.UIElement.Update ( )

pure virtual

Update the elements state and handles input. Overriden in derived classes

Implemented in MB2D.UI.ListControl, MB2D.UI.UIControlElement, MB2D.UI.Label, MB2D.UI.Button, and MB2D.UI.Layout.

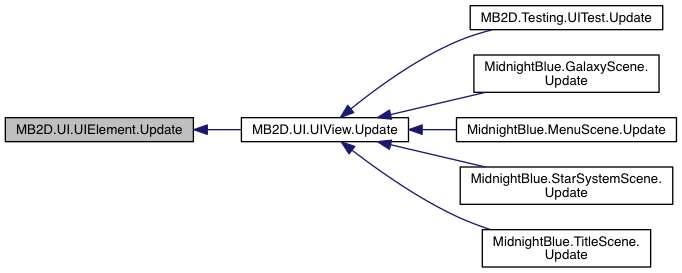

Here is the caller graph for this function:

Property Documentation

§ BackgroundColor

Color MB2D.UI.UIElement.BackgroundColor

getset

Gets or sets the color of the elements background.

The color of the background.

§ BorderBottomColor

Color MB2D.UI.UIElement.BorderBottomColor

getset

Gets or sets the color of the border bottom.

The color of the border bottom.

§ BorderColor

Color MB2D.UI.UIElement.BorderColor

getset

Gets or sets the color of the border.

The color of the border. Resets all border sides' colors to this color.

§ BorderDisplayed

bool MB2D.UI.UIElement.BorderDisplayed

getset

Gets or sets a value indicating whether this T:MB2D.UI.UIElement has itsborder displayed.

true if border should be displayed; otherwise, false.

§ BorderLeftColor

Color MB2D.UI.UIElement.BorderLeftColor

getset

Gets or sets the color of the border left.

The color of the border left.

§ BorderRightColor

Color MB2D.UI.UIElement.BorderRightColor

getset

Gets or sets the color of the border right.

The color of the border right.

§ BorderTopColor

Color MB2D.UI.UIElement.BorderTopColor

getset

Gets or sets the color of the border top.

The color of the border top.

§ BorderWidth

int MB2D.UI.UIElement.BorderWidth

getset

Gets or sets the width of the border.

The width of the border.

§ BoundingBox

Rectangle MB2D.UI.UIElement.BoundingBox

get

Gets the bounding box of this element

The bounding box.

§ Content

UIContent MB2D.UI.UIElement.Content

get

Gets the UIContent of the element, only available in container elements

The content.

§ Fill

bool MB2D.UI.UIElement.Fill

getset

Gets or sets a value that indicates the element should be stretched or shrunk to fill its parents bounds exactly

true if set to fill parent; otherwise, false.

§ Font

SpriteFont MB2D.UI.UIElement.Font

getset

Gets or sets the font used in rendering the elements TextContent

The font.

§ Size

Vector2 MB2D.UI.UIElement.Size

get

Gets the column and row count of the element

The elements grid size.

§ Tag

string MB2D.UI.UIElement.Tag

getset

Gets or sets the tag used to quickly access this element and uniquely identify it.

The tag.

§ TextColor

Color MB2D.UI.UIElement.TextColor

getset

Gets or sets the current color of the text.

The text contents current color value.

§ TextContent

string MB2D.UI.UIElement.TextContent

getset

Gets or sets the string rendered by the element.

The content of the text.

The documentation for this class was generated from the following file:

MB2D/src/UI/UIElement.cs
